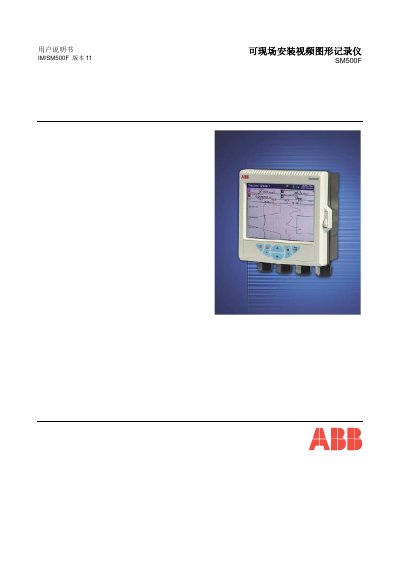

This manual covers the installation, operation, configuration, and specifications of the ABB SM500F field-installable video chart recorder.
The ABB SM500F is a field-installable video chart recorder designed for industrial process control, flow measurement, and gas and liquid analysis. It features 8 software recording channels divided into two process groups, supporting data sources from general analog inputs, Modbus communication, digital inputs, or internal signals. The device allows flexible data display through vertical or horizontal chart views and indicator views with optional built-in bar statistics. This manual is written in Chinese.
| Recording Channels | 8 software recording channels |
|---|---|
| Process Groups | 2 process groups |
| Alarms per Channel | 4 alarms per channel |
| Accumulators per Channel | 2 accumulators per channel |
| Display Type | Monochrome FSTN or Color TFT LCD |
| Display Diagonal | 144mm (Color) / 120mm (Monochrome) |
| Internal Flash Memory | 8 Mb |
| Sampling Rate Range | 0.1s to 12h |
| Security Users | Up to 12 users |
The SM500F comes standard with 8 software recording channels.
Data sources include general analog inputs, Modbus communication, digital inputs, or internal analog and digital signals.
The device supports up to 12 users with different usernames and passwords.
