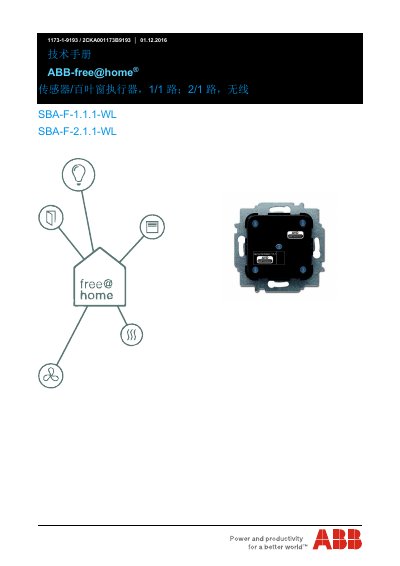

ABB free@home Sensor / Blind Actuator SBA-F-1.1.1-WL, SBA-F-2.1.1-WL Technical Manual

Technical manual for ABB free@home sensor and blind actuator models SBA-F-1.1.1-WL and SBA-F-2.1.1-WL, covering safety, installation, wiring, operation and…

Brand: ABB
Category: Automation control Equipment
Document type: User Manual
Language: Chinese
Pages: 37
File format: PDF
File size: 1.7 MB
Published: 06 October, 2026
Updated: 06 October, 2026
MD5 checksum: 7C11BACA50A8EA099C71F48E59B347C3
PDF: ABB free@home Sensor / Blind Actuator SBA-F-1.1.1-WL, SBA-F-2.1.1-WL Technical Manual PDF

About this manual

This manual provides safety guidelines, product structure, technical data, wiring diagrams and step‑by‑step installation instructions for the ABB free@home sensor/blind actuator units. It also describes commissioning, firmware updates, operation procedures and maintenance recommendations.

The document is intended for qualified electrical engineers and includes detailed specifications such as operating voltage, load current and dimensions, as well as environmental and recycling information. This manual is written in Chinese.

What's inside

Manual Tips
Safety Tips
Structure and Function
Technical Data
Connection and Installation
Commissioning
Update
Operation
Maintenance
Remarks

Specifications

Operating voltage	100‑240 V
Dimensions (mm)	71 × 51 × 51 × 71 × 3245

Frequently asked questions

What voltage range can the device operate on?

The device is designed for an operating voltage of 100 V to 240 V.

Who is allowed to install and service the actuator?

Only trained electrical engineers with the appropriate qualifications may install, commission and maintain the device.

What components are included in the supply?

The supply includes the embedded module and sensor; a matching switch and frame must be added separately.
