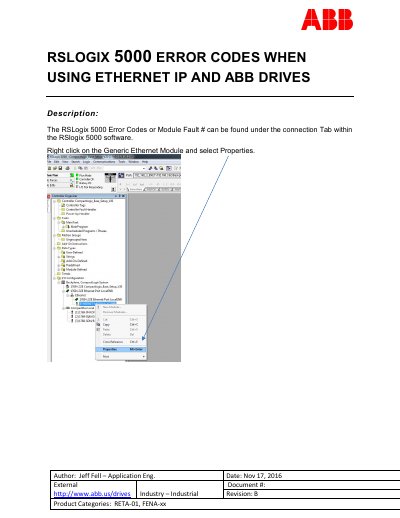

This guide explains RSLogix 5000 error codes and provides troubleshooting steps for Ethernet IP connection issues with ABB RETA-01 and FENA-xx drives.
This document details common RSLogix 5000 error codes encountered when using Ethernet IP communication with ABB RETA-01 and FENA-xx drive series. It covers specific fault codes such as connection timeouts, invalid output application paths, and size mismatches.
The PLC cannot locate the drive at the given IP address.
There is a mismatch in the selected profile between the PLC and Drive.
The connection words size is too large to fit in the programmed word array size in the PLC.
There is a mismatch in the selected profile between the PLC and Drive.
