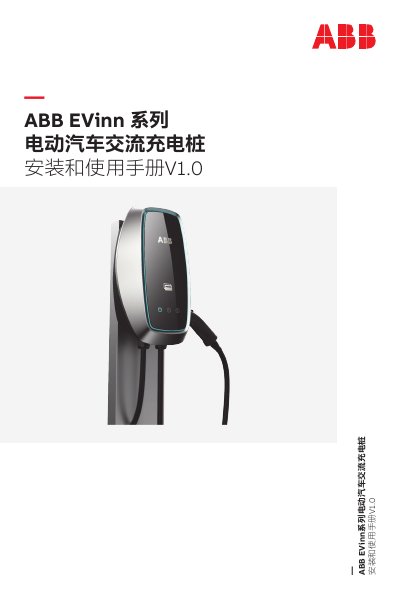

This manual provides installation and usage instructions for the ABB EVinn series AC electric vehicle charging station, covering safety, setup, operation…
This manual is designed for the ABB EVinn series of safe and intelligent AC charging stations, applicable to domestic plug-in hybrid (PHEV) and battery electric vehicle (BEV) new energy vehicles. It provides comprehensive guidance for end-users and maintenance personnel on the use and maintenance of the charging equipment. The document covers safety warnings, product diagrams, technical parameters, installation steps, charging procedures, maintenance, and troubleshooting. This manual is written in Chinese.
| Rated Output Current | 32A |
|---|---|
| Rated Power | 7kW |
| Input Voltage Range | 220V ± 20% |
| Output Voltage Range | 220V ± 20% |
| Working Frequency | 50/60 Hz |
| Protection Rating | IP55 |
| Operating Temperature | -30℃～60℃ |
| Maximum Altitude | ≤ 2000m |
| Product Weight | < 8 kg |
| Product Dimensions | 238mm x 155mm x 402mm |
Do not use it, stop using it immediately, and contact the charging operation staff.
Rotate the emergency stop button clockwise lightly to reset it.
The recommended cable conductor cross-sectional area is ≥ 6mm² (YJV 3x6mm²).
