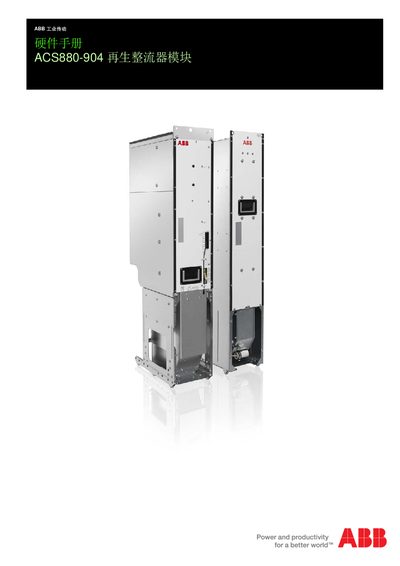

This hardware manual provides installation, configuration, electrical connection, operation, and maintenance instructions for the ABB ACS880-904…
The document is a comprehensive hardware manual for the ABB ACS880-904 Regenerative Rectifier Module. It covers the entire lifecycle of the equipment, including safety guidelines, operating principles, and detailed hardware descriptions such as circuit diagrams and layout specifications.
Key sections include instructions for handling and unpacking the module, cabinet structure configurations (Rittal TS 8 and general cabinets), electrical installation procedures, startup sequences, maintenance schedules, and technical data. The manual also details ordering information for various kits and accessories required for installation. This manual is written in Chinese.
| Input Voltage (400 V AC device) | 380...415 V AC three-phase ± 10% |
|---|---|
| Input Voltage (690 V AC device) | 525...690 V AC three-phase ± 10% |
| Frequency | 50/60 Hz, fluctuation range ± 5% |
| Power Factor (Fundamental) | 0.98 |
| Overvoltage Category | OVCIII (at altitude 4000 m) |
The input voltage range is 525...690 V AC three-phase ± 10%.
The rated frequency is 50/60 Hz with a fluctuation range of ± 5%.
The fundamental power factor is 0.98, with a total power factor of 0.93-0.95.
