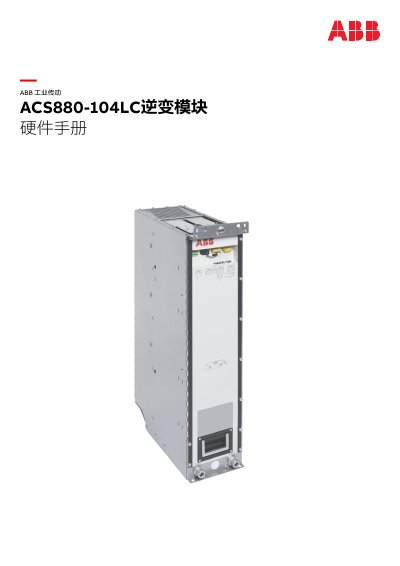

This manual covers the hardware description, installation, startup, maintenance, and technical data for the ABB ACS880-104LC inverter module.
This document serves as a hardware manual for the ABB ACS880-104LC inverter module. It provides detailed information on the operating principles, hardware specifications, and physical dimensions of the unit.
The guide includes comprehensive instructions for moving and unpacking the module, cabinet structure assembly, electrical installation procedures, startup steps, and routine maintenance tasks such as cooling system checks and component replacement. This manual is written in Chinese.
| Coolant Type | 25% or 50% Antifrogen L water mixture |
|---|---|
| Coolant Storage Temp Limit (-16°C) | 25% Antifrogen L mixture |
| Coolant Storage Temp Limit (-40°C) | 50% Antifrogen L mixture |
| Operating Temp Limit | Not below 0°C (32°F) |
The system uses a 25% or 50% Antifrogen L water mixture.
No, operation is not allowed below 0°C (32°F) regardless of the coolant's ice point.
The coolant quality should generally be inspected every two years.
