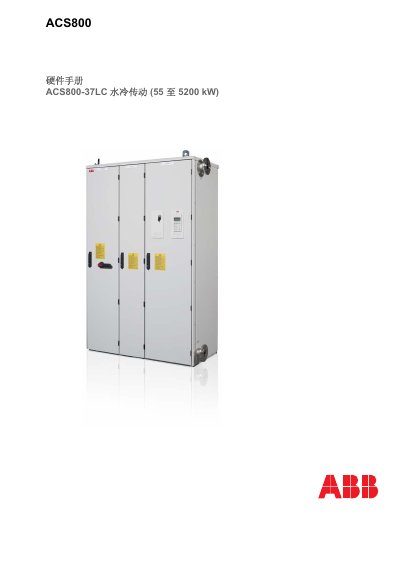

ABB ACS800-37LC Water-Cooled Drive Hardware Manual

This manual covers the hardware installation, maintenance, and technical specifications for the ABB ACS800-37LC water-cooled drive system ranging from 55 to…

Brand: ABB
Category: Industrial Robot
Document type: Service Manual
Language: Chinese
Pages: 166
File format: PDF
File size: 8.4 MB
Published: 17 October, 2026
Updated: 17 October, 2026
Model: ACS800-37LC
MD5 checksum: BA882F240D87E019059E5DD2C848614D
PDF: ABB ACS800-37LC Water-Cooled Drive Hardware Manual PDF

About this manual

This document serves as the hardware manual for the ABB ACS800-37LC water-cooled drive, covering power ratings from 55 kW to 5200 kW. It provides comprehensive guidance on safety precautions, installation procedures, and maintenance requirements for the drive unit and its associated components, including cooling systems and optional modules. This manual is written in Chinese.

What's inside

Safety Precautions
Installation and Maintenance Safety
Electrical Safety
Grounding
Permanent Magnet Motor Drive
Printed Circuit Boards
Fiber Optic Cables
Hand Crank Winch Operation
Water-Cooled System Operation
Mechanical Installation

Specifications

Power Rating Range	55 to 5200 kW
Frequency Support	50 Hz and 60 Hz
Cooling Type	Water-cooled
Effective Date	2011-02-11

Frequently asked questions

What is the power range of the ACS800-37LC drive?

The drive covers a power range from 55 kW to 5200 kW.

Which frequencies are supported by this drive?

The drive supports both 50 Hz and 60 Hz power sources.

What is the document code for this manual?

The document code is 3ABD00030553.

Download PDF (8.4 MB)
