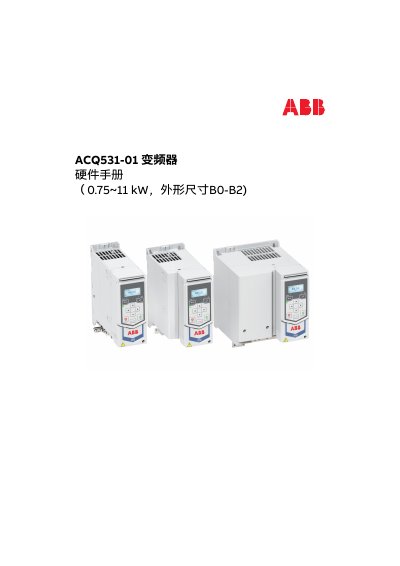

The ABB ACQ531-01 inverter hardware manual provides safety guidelines, installation, wiring, and technical data for 0.75–11 kW units.
This manual covers all safety requirements, mechanical and electrical installation procedures, and wiring details for the ACQ531‑01 inverter (0.75~11 kW, mounting sizes B0‑B2). It includes sections on safety notices, hardware description, cable selection, and maintenance.
The document also provides technical data such as rated voltage, IP rating, and recommended cable specifications, as well as a checklist for final inspection and guidance on using the safety‑torque‑cancel function. This manual is written in Chinese.
| Power range | 0.75–11 kW |
|---|---|
| Input voltage | 380–480 V AC |
| Mounting size | B0, B1, B2 |
