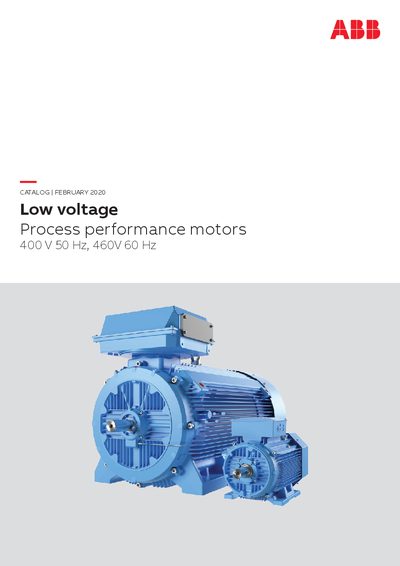

ABB Low Voltage Process Performance Motors Catalog 9AKK105944

About this manual

This document serves as a comprehensive catalog and technical information guide for ABB's low voltage process performance motors. It details product specifications including international motor efficiency standards (IE classes), various mounting arrangements, cooling methods, degrees of protection, insulation classes, and surface treatments.

The catalog covers motors ranging from Sizes 63 to 450 with power outputs from 0.09 kW to 1000 kW at voltages of 400 V (50 Hz) or 460 V (60 Hz). It provides specific data for both cast iron and aluminum motors, including ordering information, rating plates, technical data tables, variant codes, mechanical design details, dimension drawings, and available accessories.

What's inside

• International motor efficiency standards
• Mounting arrangements
• Cooling methods
• Degrees of protection: IP code/IK code
• Insulation classes
• Variable speed drives with Process performance motors
• Cast iron motors specifications
• Aluminum motors specifications
• Ordering information and variant codes
• Mechanical design and dimension drawings

Specifications

Frequently asked questions

What voltage and frequency ratings are covered by this motor catalog?

The catalog covers low voltage process performance motors rated for 400 V at 50 Hz and 460 V at 60 Hz.

What is the power range and size range for the motors listed?

The motors are available in sizes 63 to 450 with a power output ranging from 0.09 to 1000 kW.

What are the ambient temperature limits for the motors described in this document?

The motors are marked for operation within an ambient temperature range of -20 °C to +60 °C.
