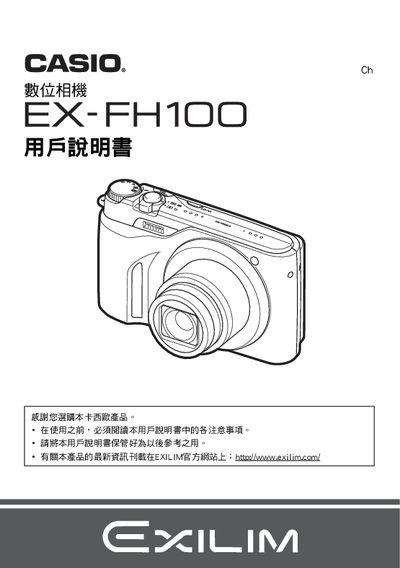

This manual guides users through unpacking the EX-FH100, installing the NP-90 rechargeable battery and BC-90L charger, and performing the initial setup. It covers basic functions such as power on/off, shooting modes, autofocus, ISO settings, white balance, and image quality adjustments.
Further sections explain playback, image transfer to a computer via USB, formatting the internal memory, battery charging, and troubleshooting common issues. Detailed specifications for the battery and charger are listed at the end of the document. This manual is written in Chinese.
| Battery rated voltage | 37 V |
|---|---|
| Battery capacity | 1950 mAh |
| Battery operating temperature | 0 °C to 40 °C |
| Battery dimensions (W × H × D) | 34.0 mm × 52.3 mm × 10.9 mm |
| Battery weight | ≈ 42 g |
| Charger model | BC-90L |
| Charger input voltage | 100‑240 V AC, 200 mA, 50/60 Hz |
| Charger output | 4.2 V DC, 1000 mA |
| Charger operating temperature | 5 °C to 35 °C |
| Charger dimensions (W × H × D) | 57 mm × 24 mm × 96 mm |
| Charger weight | ≈ 70 g |
| Battery charging time | 200 minutes |
Use the USB port and set the USB protocol in the camera’s settings to enable data transfer.
The battery takes about 200 minutes to fully charge.
The battery can be used in temperatures from 0 °C to 40 °C.
