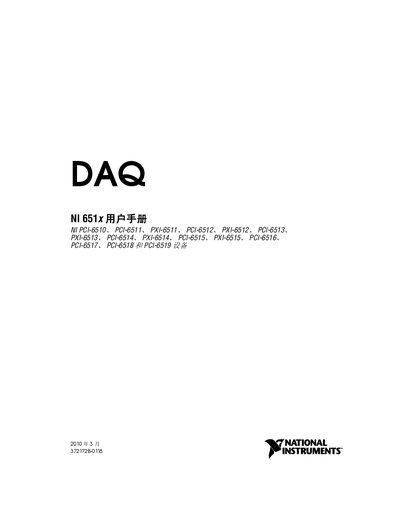

This manual describes the features and functions of the NI PCI-6510, PCI-6511, PXI-6511, PCI-6512, PXI-6512, PCI-6513, PXI-6513, PCI-6514, PXI-6514, PCI-6515, PXI-6515, PCI-6516, PCI-6517, PCI-6518 and PCI-6519 devices. This manual includes information on installing, setting up, configuring, using and troubleshooting the devices.
This manual provides detailed information for the NI 6510‑6519 data‑acquisition (DAQ) devices. It includes hardware basics, configuration steps, functional overviews, pin‑out descriptions, signal wiring examples, and cable accessories. The document also contains safety warnings, warranty terms, and technical‑support contact information.
The guide is organized into chapters on basic concepts, digital I/O, connector pin specifications for each model, signal descriptions, and example applications such as watchdog timers, programmable power‑up states, and optical‑isolation inputs and outputs. Appendices cover technical support, a glossary, and an index for quick reference. This manual is written in Chinese.
| Optical isolation input | Supported on NI 6510, 6511, 6514, 6515, 6518, 6519 |
|---|---|
| Darlington array optical isolation output | Supported on NI 6510‑6519 (various models) |
| Watchdog timer | Available on all NI 651x models |
| Programmable power‑up state | Available on all NI 651x models |
NI 6510, 6511, 6514, 6515, 6518, and 6519 provide optical‑isolation inputs.
