The S-1000 series is a high-precision voltage detector IC developed using CMOS technology. The internal detection voltage is fixed with an accuracy of ±1.0%. It has a super low power consumption of 350 nA (typical value). The output method has N-channel open drain output and CMOS output. Compared with the previous CMOS voltage detector, it has achieved high accuracy, ultra-low power consumption and ultra-small package, so it is most suitable for portable devices.
The S-1000 series is an ultra‑small, high‑precision pressure sensor that uses CMOS technology to achieve low power consumption and high accuracy. It is designed for portable applications such as handheld devices, cameras, PDAs, and other equipment requiring compact power sources.

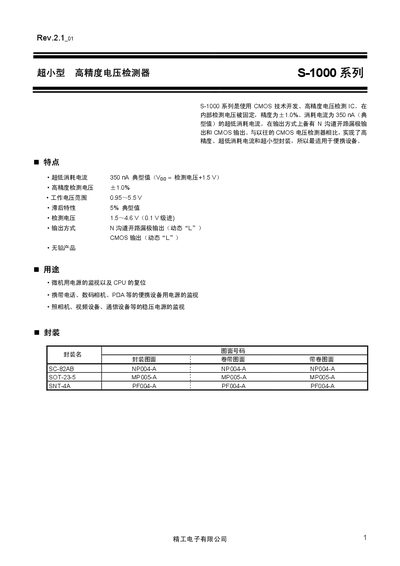

The document lists the sensor's package options, pin configurations, electrical characteristics, maximum ratings, and typical performance figures. Tables include part numbers for different packages, output types (N‑channel MOSFET and CMOS), and detailed specifications for voltage ranges, current consumption, and temperature limits. This manual is written in Chinese.
| Supply current (typical) | 350 nA |
|---|---|
| Maximum power dissipation (SC‑82AB) | 200 mW |
| Operating temperature range | -40 °C to +85 °C |
| Storage temperature range | -40 °C to +125 °C |
The sensor draws a typical supply current of 350 nA.
The SC‑82AB package can dissipate up to 200 mW, while the SOT‑23‑5 and SNT‑4A packages can each handle up to 300 mW.
