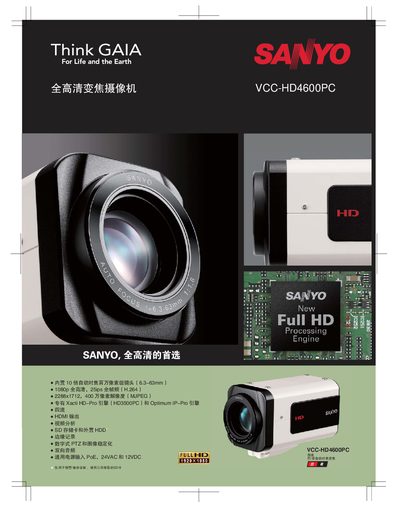

This document introduces a camera with features such as 10x autofocus million-pixel-level lens, 1080p Full HD. It adopts the proprietary Xacti HD-Pro engine and Optimum IP-Pro engine, supports four-stream HDMI output, video analysis, SD storage card, and external HDD. The camera also features digital PTZ and image stabilization, two-way audio, etc.
The VCC‑HD4600PC is a full‑HD zoom camcorder featuring a 10× optical, 16× digital zoom lens, 1/2.5" progressive‑scan CMOS sensor and support for HDMI output, SDHC cards and external HDD storage. It offers multiple video streams, network protocols and basic security features such as password authentication and SSL for MJPEG.
This manual lists the camera’s technical specifications, power options (24 V AC, 12‑15 V DC, PoE), interface connectors, operating temperature range, and installation guidelines. It also includes safety notes and regulatory information. This manual is written in Chinese.
| Image sensor | 1/2.5" progressive scan CMOS |
|---|
It provides a composite video output and a micro HDMI output.
The camera can support up to 20 simultaneous network connections.
The camera operates from –10 °C to +50 °C.
