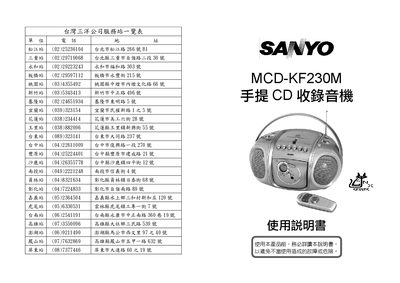

This document is a list of service stations of Sanyo Company in Taiwan, providing the phone numbers and addresses of the service stations in various cities.
The Sanyo MCD‑KF230M is a portable CD/MP3 player with built‑in AM/FM radio and cassette recorder. It can play and record from CDs, MP3 discs, radio broadcasts, and cassette tapes, and runs on either AC power or eight C‑size batteries.
This document covers the product’s technical specifications, how to operate each function (play, record, program tracks, repeat/random modes), power source selection, safety warnings, cleaning and maintenance, battery replacement, and a troubleshooting guide for common issues. This manual is written in Chinese.
| Power Supply | AC 110V 60Hz or DC 12V UM‑2 (C‑Size) × 8 |
|---|---|
| Power Output | 1.5 W × 2 (RMS) |
| Power Consumption | 20 W |
| Speaker | 3 W / 8 Ω |
| Cassette Frequency Response | 125 Hz – 6300 Hz |
| Tape Speed | 4.75 cm/sec |
| Radio Frequency Range | AM 540 kHz – 1600 kHz, FM 88 MHz – 108 MHz |
| CD Frequency Response | 125 Hz – 20000 Hz |
| Signal‑to‑Noise Ratio | 55 dB |
| Sampling Frequency | 44.1 kHz |
| Dimensions (W×D×H) | 302 mm × 221 mm × 154 mm |
| Weight | 2.3 kg (excluding batteries) |
| Manufacture Year | 2006 |
