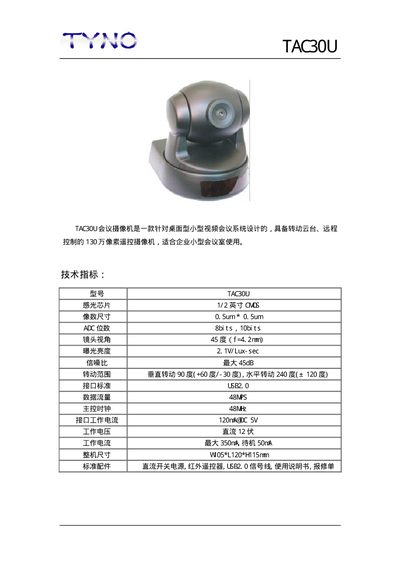

TAC30U is a conference camera designed for desktop small video conferencing system, with rotating turret, remote control of 1.3 million pixels remote camera, suitable for enterprise small conference room.
The TAC30U is a compact, portable video camcorder designed for meeting rooms and small conference spaces. It features a 1.3‑megapixel sensor, a built‑in pan‑tilt head, and USB 2.0 connectivity for easy control and data transfer.
The manual lists technical specifications such as sensor size, pixel dimensions, ADC resolution, field‑of‑view angles, power requirements, and physical dimensions, as well as the included accessories like a remote control and USB cable. This manual is written in Japanese.
| Model | TAC30U |
|---|---|
| Sensor Size | 172 inch CVC5 |
| Pixel Size | 0.5 µm × 0.5 µm |
| ADC Resolution | 8 bits, 10 bits |
| Field of View (Diagonal) | 45° |
| Luminance Sensitivity | 2.1 V/Lux‑sec |
| Maximum SNR | 45 dB |
| Vertical Tilt Range | 90° (+60° / –30°) |
| Horizontal Pan Range | 240° (120° each side) |
| Interface | USB 2.0 |
| Data Rate | 48 Mbps |
| Interface Current | 120 nA @ 5 V |
| Operating Voltage | 12 V |
| Standby Current | 350 nA |
| Dimensions (W×L×H) | ≈5 mm × 120 mm × 15 mm |
It uses a 1.3‑megapixel sensor (130 万像素).
The camcorder provides a USB 2.0 interface.
The device operates from a 12 V power supply.
The horizontal pan range is 240° (120° each side).
