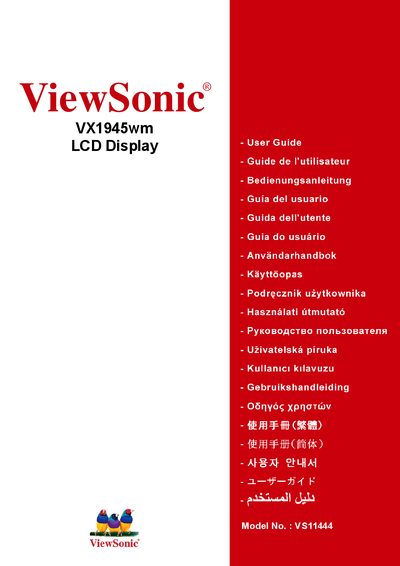

ViewSonic VX1945wm LCD Display User Manual, introduces the safety, installation, use and cleaning of the display
This manual covers everything you need to set up and use the ViewSonic VX1945wm 19‑inch LCD display. It includes safety warnings, package contents, quick‑install procedures, ViewDock™ connection, wall‑mount options, and detailed menu and image‑adjustment instructions.
Technical specifications, cleaning recommendations, warranty information, and customer‑support contacts are also provided, helping you maintain optimal performance and resolve common issues. This manual is written in Chinese.
| Resolution | 1440 x 900 @ 60‑75 Hz |
|---|---|
| Pixel Pitch | 0.285 mm |
| Input Signals | RGB analog 0.7/1.0 Vp‑p 75 Ω, TMDS digital 100 Ω |
| Power Voltage | 100‑240 VAC, 50‑60 Hz |
| Weight | 12.6 lb (5.7 kg) |
Turn the display off, then wipe the screen with a clean, soft, lint‑free cloth; if needed, apply a small amount of non‑ammonia, non‑alcohol glass cleaner to the cloth, not directly on the screen.
Make sure the power button is on, verify the AC cord is securely connected to the monitor and the outlet, and test the outlet with another device.
Connect the USB A‑B cable from the PC to ViewDock, plug the power adapter into the DC jack, and attach the audio cables as described.
