Pro-face ST3000 Hardware Manual

This manual contains the steps that must be followed for correct and safe operation of ST

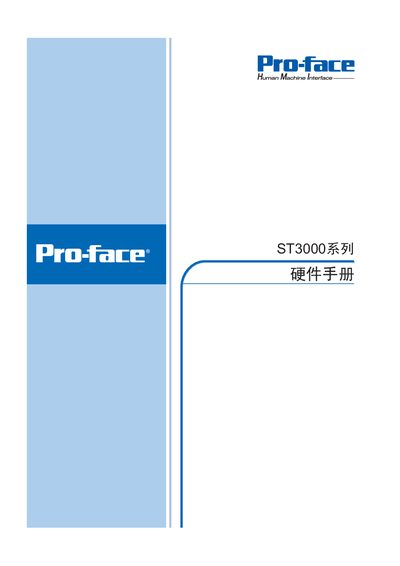

Pro-face ST3000 Hardware Manual - cover page
Brand
ST3000系列
Category
Automation control Equipment
Document type
User Manual
Language
Chinese
Pages
101
File format
PDF
File size
4.3 MB
Updated
30 September, 2023
Model
ST3000
MD5 checksum
DFFD52F90DBA2435387679113F83662D
PDF
Pro-face ST3000 Hardware Manual PDF

About this manual

This manual explains how to safely install, connect, and operate the ST3000 series programmable human‑machine interface. It covers safety symbols, grounding requirements, LCD handling, and environmental restrictions.

Key sections include basic safety rules, wiring and grounding instructions, LCD screen usage, backlight information, waterproof gasket installation, and a note that the backlight is not replaceable. The document also outlines proper handling of CF cards and battery replacement procedures. This manual is written in Chinese.

What's inside

  • Basic Safety
  • Wiring and Grounding
  • LCD Screen Usage
  • Backlight Information
  • Waterproof Gasket Installation
  • CF Card Handling
  • Battery Replacement
  • Icons and Symbols

Specifications

Backlight replaceabilityNot replaceable; replace whole unit if failed
Waterproof gasket IP ratingIP65
Ground resistance< 100 Ω
Ground wire cross‑section≥ 2 mm²

Frequently asked questions

Can the backlight of the ST3000 be replaced?

No, the backlight is not replaceable; the whole unit should be replaced if the backlight fails.

What IP rating does the waterproof gasket meet?

The gasket meets an IP65 rating for moisture protection.

What ground resistance should be used when wiring the ST3000?

Ground resistance should be less than 100 Ω.

Download PDF (4.3 MB)
