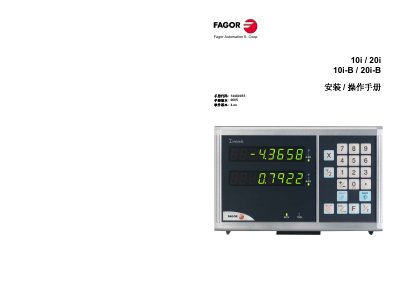

This file is the installation and operation manual of Fagor Automation S. Coop. 10i / 20i 10i-B / 20i-B, which introduces the overview, operation methods, installation methods, appendices and other contents of the digital display table.
This manual provides step‑by‑step instructions for installing and operating the Fagor Automation 10i / 20i digital readout used on machine tools. It describes the front panel layout, power‑on procedures, and how to switch between display units and resolution modes.
The guide also covers zero‑point selection, tool‑length compensation, special functions such as ratio coefficients and work‑piece centering, as well as safety, warranty and maintenance information. This manual is written in Chinese.
| Display digits per axis | 8 digits |
|---|---|
| LED character height | 14.1 mm |
| Selectable units | millimeter and inch |
| Axis count | 1 axis for 10i, 2 axes for 20i |
| Resolution modes | high and low resolution |
Press the unit key; the display toggles between millimeter and inch. The INCH indicator light turns on for inches and off for millimeters.
Press the on/off key before disconnecting power; the readout saves the current position so it can be restored after power is restored.
Press the mode key to toggle; the ABS indicator shows absolute mode, while both ABS and "home" lights off indicate incremental mode.
