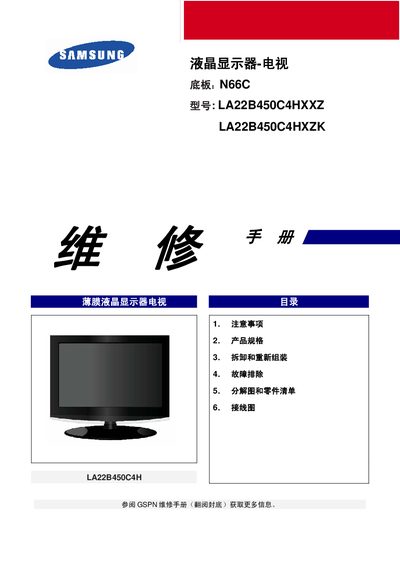

This is a Samsung LA22B450C4H LCD Display TV repair manual, including product disassembly and reassembly, troubleshooting, adjustment and adjustment, factory mode adjustment, setting hotel option data, white balance-calibration, repair information, etc.
This Samsung service manual provides detailed safety precautions, product specifications, step‑by‑step disassembly and reassembly instructions, and troubleshooting guidance for the LA22B450C4H LCD television. It also includes exploded views, a complete parts list, and wiring diagrams for all major connections.
The document is intended for qualified service technicians and contains essential information such as panel type, power consumption, dimensions, audio output, and environmental limits, enabling accurate diagnosis and repair of the unit.
| Brightness | 400 cd/m² |
|---|---|
| Contrast Ratio | 800:1 |
| Response Time | 5 ms |
| LCD Panel Model | V216B1-L01 |
| Power Consumption | < 60 W (stand‑by < 1 W) |
| Dimensions (with stand) | 557.8 mm × 216 mm × 425.9 mm |
| Weight (with stand) | 6.5 kg |
| Internal Speaker Output | 5 W per channel |
| Operating Temperature | 50 °F ~ 104 °F (10 °C ~ 40 °C) |
| Operating Humidity | 10 % ~ 80 % (non‑condensing) |
The TV uses a TFT‑LCD panel with the model number V216B1‑L01.
The TV consumes less than 60 W in normal operation and less than 1 W in standby mode.
