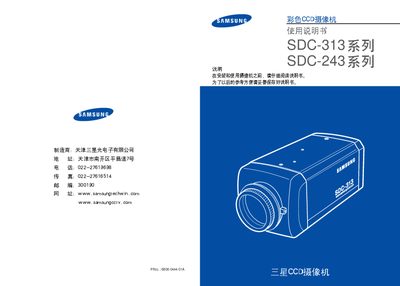

This is the user manual of Samsung Color CCD Camera. It introduces the characteristics and features of the camera, as well as the usage methods, installation methods, and common problems.
The manual explains how to install, connect and operate the Samsung SDC-313 and SDC-243 color CCD camcorders. It includes detailed descriptions of features such as back‑light compensation, high resolution, electronic aperture control and synchronization modes.
Safety precautions, preventive measures, wiring diagrams, lens‑mount options and a full specification table are provided, along with a troubleshooting section for common issues. This manual is written in Chinese.
| Maximum power consumption | 3.5W (Max) |
|---|---|
| Total pixels (SDC-313) | 542(H) x 582(V) |
| Resolution (SDC-313) | 480 TV Line |
| Operating temperature | -10°C ～ +50°C |
| Dimensions (W×H×D) | 58 mm × 52 mm × 121 mm |
| Video output | VBS ; 1Vp‑p, 75 |
| Scan frequency | 15.625 kHz(H) / 50 Hz(V) |
| Synchronization system | INT/LL selectable (0‑270°) |
The camcorder can be used from –10 °C to +50 °C.
Enable the flickerless function, which locks the electronic shutter to 1/100 s (NTSC) or 1/120 s (PAL).
