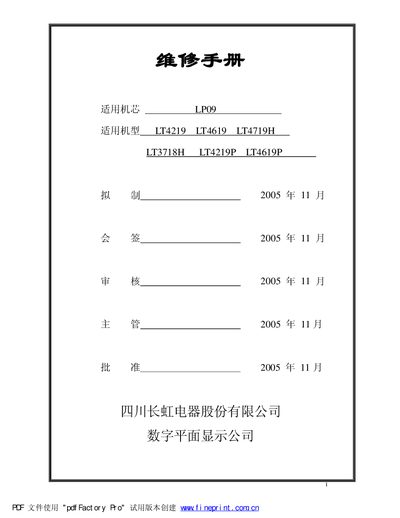

This is a maintenance manual for Changhong LP09 liquid crystal TV. It describes the features, main functions, signal flow, typical fault repair procedures and so on.
The Changhong LP09 LCD TV repair manual provides detailed information on the chassis used in several TV models (LT4219, LT4619, LT4719H, LT3718H, LT4219P, LT4619P). It describes the TV's main features, multi‑standard RF input, HDMI, VGA, YPbPr, AV inputs, preset channel storage, power‑saving modes and the overall circuit architecture.
The document includes functional descriptions of the key integrated circuits, signal‑flow analysis, typical fault diagnosis procedures, factory‑mode configuration, and appendices with schematics, assembly drawings and wiring diagrams to assist service technicians in troubleshooting and repairing the unit. This manual is written in Chinese.
| RF input | CATV capable, receives up to 470 MHz |
|---|---|
| HDMI input | HDMI 1.1 receiver supporting up to 1080p |
| Preset channels | 236 preset programs can be stored |
| Power supply outputs | +24 V, +18 V, +5 V and +5 V standby from AC 220 V |
Check U1; the issue is usually that HDCP has not been written or was written incorrectly. Re‑write the HDCP data.
Verify that the screen‑connection cable is properly connected and re‑attach it if necessary.
Inspect the high‑frequency front‑end circuitry, including the bus and power supply; a faulty RF module may be the cause.
