QC-8016RX-8 is a 8-way power transmission twisted pair transmitter that can be used with QC-8016TX to form a 8-to-1 300m twisted pair video power transmission system. QC-8016TX has a built-in voltage regulator with a maximum output current of 3A.
The QC-8016RX-8 is an 8‑channel twisted‑pair power transmitter designed to work with the QC-8016TX to form a 300 m video‑over‑power transmission system. It supports up to 150 W total output power and operates from AC 220 V.

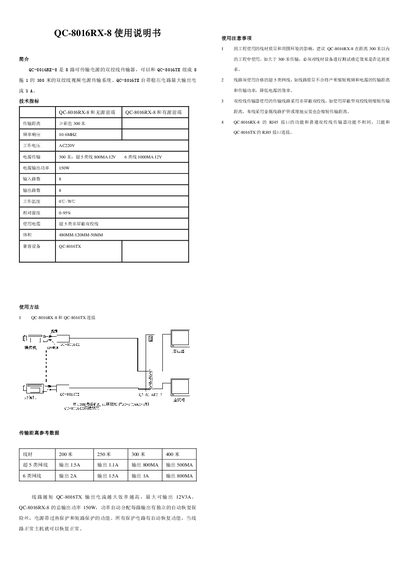

The manual includes technical specifications, safety precautions, wiring guidelines, and transmission‑distance reference tables. It also describes protection features such as over‑heat and short‑circuit protection, and notes that only the RJ45 interface of the QC-8016RX-8 may be connected to the QC-8016TX. This manual is written in Chinese.
| Maximum transmission distance | ≥300 m |
|---|---|
| Frequency response | 10‑6 MHz |
| Working voltage | AC 220 V |
| Total output power | 150 W |
| Operating temperature range | 0 ℃‑70 ℃ |
| Relative humidity range | 0‑95 % |
| Cable type | Cat‑5e non‑shielded twisted pair |
| Dimensions (L×W×H) | 480 mm × 120 mm × 50 mm |
| Output current (300 m, Cat‑5e) | 800 mA |
The QC-8016RX-8 can transmit up to 300 meters when using the specified cable types.
The device provides a total output power of 150 W.
