QC-2009-8P is an 8-channel power transmission device that can be used with QC-8016TX to form an 8-in-1 300-meter twisted pair video power transmission system. It features long transmission distance, high output power, and stable reliability.
The QC-2009-8P is an 8‑channel twisted‑pair power transmitter that delivers video and power over a single cable, designed to work with the QC-8016TX unit to form a 300 m transmission system.

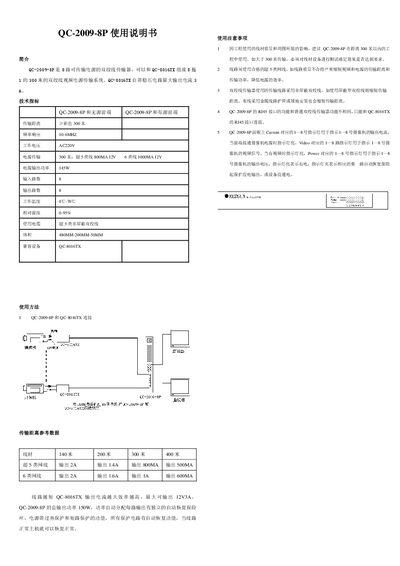

This manual outlines the technical specifications, connection procedures, recommended cable types, safety precautions, and protection features such as overheat and short‑circuit protection with automatic reset. This manual is written in Chinese.
| Frequency response | 10‑6 MHz |
|---|---|
| Operating voltage | AC220 V |
| Total output power | 150 W |
| Working temperature | 0 °C‑70 °C |
| Relative humidity | 0‑95 % |
It is recommended to use the QC-2009-8P within 300 m; longer distances require testing to confirm performance.
The device includes overheat and short‑circuit protection with automatic reset.
