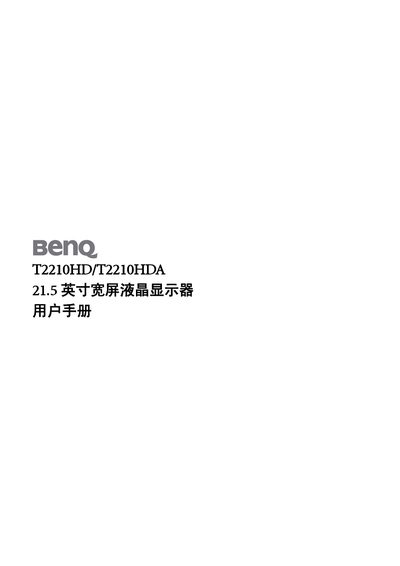

This manual introduces the packaging contents, installation, connection, adjustment, troubleshooting and other information of the T2210HD/T2210HDA 21.5-inch wide-screen liquid crystal display.
The manual covers everything needed to set up the BenQ T2210HD/T2210HDA 21.5‑inch widescreen LCD monitor, including the items in the package, installation steps, connecting the monitor to a PC and power source, adjusting picture settings, button and indicator functions, and the OSD icon list.
It also provides troubleshooting tips for common issues such as no signal or black screen and lists the full specifications of the display, such as panel size, pixel pitch, color depth, input connectors, tilt range, dimensions, weight and power consumption. This manual is written in Chinese.
| Pixel pitch | 0.248 x 0.248 mm |
|---|---|
| Display colors | 16.7 million |
| Input signal frequency | Horizontal 30‑83 kHz, Vertical 56‑76 Hz |
| Connectors | 15‑pin D‑sub (analog), 24‑pin DVI (digital, not for T2210HDA) |
| Tilt angle | -5° to +20° |
| Net dimensions | 516.4 x 386.7 x 211.6 mm |
| Net weight | 4.2 kg |
| Power consumption | < 52 W (use), < 2 W (standby) |
Use the OSD Brightness setting to change the screen brightness.
Check that the power cable is correctly connected and that the monitor power switch is turned on.
The T2210HD provides a 15‑pin D‑sub analog connector and a 24‑pin DVI digital connector.
