MAST5-3C-U17 is a 3-way IGBT driver board. The driver board integrates 3 mutually isolated DC-DCs, each with a driving current of 5A. This driver board uses a current source drive mode, which reduces the Miller effect time and switching loss under the same EMI conditions. Each path has VCE short circuit protection. Each path has undervoltage protection. Each path has IGBT gate TVS protection elements. Each path has power indicator and pulse indicator. The flat line signal interface is concentrated, and supports multiple input levels. Externally, only 12VDC (9-18V) or 24VDC (18-32V) is required.
The MAST5-3C-U17 IGBT driver board provides three isolated 5 A driver channels, built‑in DC‑DC isolation up to 3500 V, and comprehensive protection functions such as short‑circuit, undervoltage and TVS protection. The board accepts a single 12 V or 24 V supply and offers flat‑cable signal interfaces for multiple input levels.

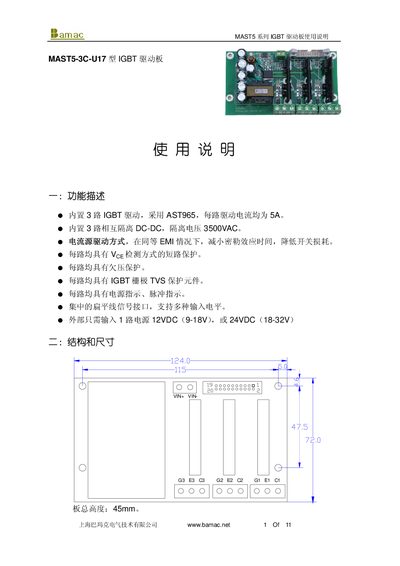

The manual details the board dimensions, pin definitions, wiring diagrams, signal input requirements, protection signal behavior, and recommended component values for different voltage levels. Electrical limits, recommended operating conditions, and installation cautions are also included. This manual is written in Chinese.
| Driver channels | 3 channels, 5 A each |
|---|---|
| Isolation voltage | 3500 V AC |
| Power supply voltage (24 V) | 24 V ±4 V |
| Power supply voltage (12 V) | 12 V ±2 V |
| Maximum power consumption | 20 W |
| Operating temperature range | -25 °C to 70 °C |
| Input voltage range | -7 V to +7 V |
| Switching frequency | 0 kHz to 100 kHz |
It provides three isolated driver channels, each capable of delivering up to 5 A.
