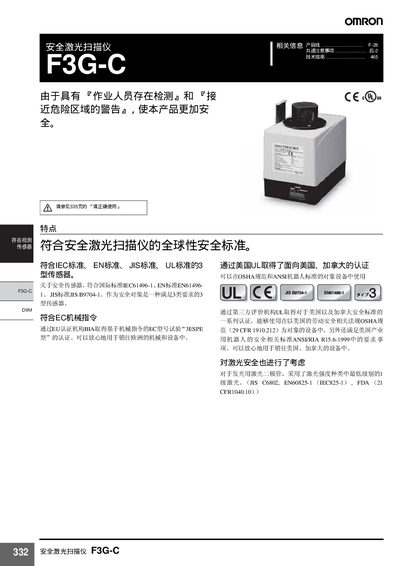

F3G-C safety laser scanner is a safety countermeasure product that has the function of detecting the presence of workers and warning of approaching dangerous areas. It meets IEC, EN, JIS, UL standards and meets the requirements of EC Machinery Directive, OSHA standards and ANSI robot standards. It can be used with peace of mind for machines and equipment sold to Europe, the United States and Canada.
The F3G‑C D9M security laser scanner uses a reflective laser sensor to detect the presence of personnel within a protected area, helping prevent accidental machine start‑ups and providing warning zones. The device complies with international safety standards such as IEC 61496‑1, EN 61496‑1, JIS B9704‑1, UL and the EC Machinery Directive.
The manual describes how to install the scanner, connect it to a PC via RS‑232C, and configure protection and warning zones using the CSL software. It also lists the electrical requirements, mechanical dimensions, accessories, and maintenance recommendations for reliable operation in industrial environments. This manual is written in Chinese.
| Detection distance (protected zone) | 0‑6 m |
|---|---|
| Scanning angle | 300° |
| Minimum detectable object | 70 mm diameter |
| Response time | ≤280 ms |
| Supply voltage | DC 24‑25 V |
| Laser protection class | Class 1 |
It uses a reflective safety sensor that scans the protected area with a 2‑D laser and determines if a person is inside the defined zone.
It is powered by a DC 24‑25 V supply with ripple voltage below 5 Vpp.
