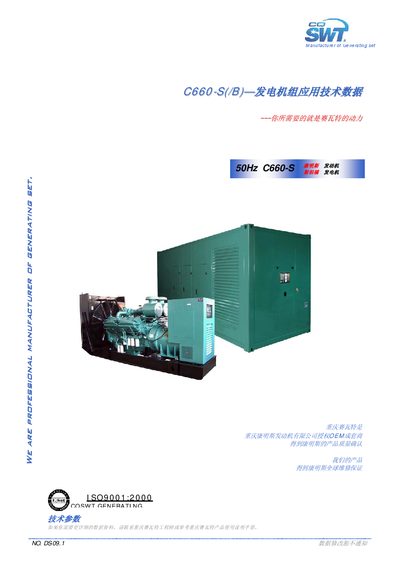

The CQSWT C660-S generator set is a joint development of Chongqing Saiwat and Cummins, using Cummins KTA38-G2 engine and Stanford LVI634B generator, with rated power of 600/750 kW/kVA, rated frequency of 50 Hz, rated voltage of 400/230 V, rated current of 1083 A, and circuit breaker capacity of 1250 A. It meets the standards of ISO3046 ISO8528 IEC34 BS EN 60034 BS5000 VDE0530 AS1359 CSA C22.2-100.
This service manual provides detailed technical data, safety standards, and maintenance information for the SWT C660‑S generator. It includes rated power, electrical characteristics, and compliance with ISO and IEC standards.
The document also lists physical dimensions, weight, and key performance figures such as fuel consumption and cooling‑system capacities, helping technicians with installation, troubleshooting, and repair tasks. This manual is written in Japanese.
| Rated Power | 600 kW / 7750 kVA |
|---|---|
| ISO Standard | ISO 3046 |
| Dimensions (L×W×H) | 4490 mm × 1630 mm × 2430 mm |
| Weight | 7800 kg |
| Alternate Model Dimensions | 6058 mm × 2434 mm × 2591 mm |
| Alternate Model Weight | 10150 kg |
The generator is rated at 600 kW (7750 kVA).
The main model measures 4490 mm × 1630 mm × 2430 mm and weighs about 7800 kg; an alternate version measures 6058 mm × 2434 mm × 2591 mm and weighs about 10150 kg.
It complies with ISO 3046, ISO 8528, IEC 34, BS EN 60034, VDE 0530, AS 1359, and CSA C22.2‑100 standards.
