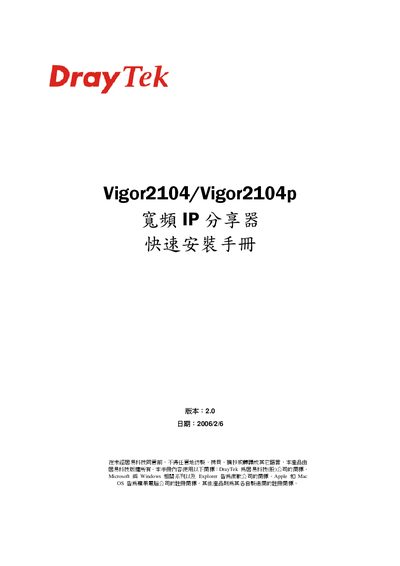

This is a quick installation manual for DrayTek Vigor2104/Vigor2104p broadband IP router, which mainly introduces the panel description, package contents, hardware installation, basic settings, troubleshooting and other content.
This guide provides safety instructions, hardware installation steps, and basic configuration procedures for the DrayTek Vigor2104/Vigor2104p router. It explains how to connect the WAN and LAN ports, power the device, and verify the system LEDs.
The document also covers setting the system administrator password, using the web interface at the default IP address (192.168.1.1), performing a factory reset, and troubleshooting common issues such as connection failures and ISP settings. This manual is written in Chinese.
| WAN port speed | 100 Mbps |
|---|---|
| LAN port speed | 10 Mbps |
| Power input voltage | 7‑7.5 V DC |
| Number of LAN ports | 4 |
| Number of WAN ports | 1 |
The default address is http://192.168.1.1 (alternatively http://192.168.2.1).
Username is "admin" and the password is blank.
It provides four LAN ports for connecting local devices.
