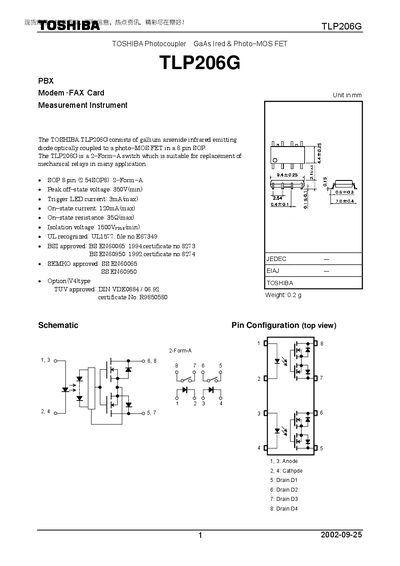

The TLP206G is a gallium‑arsenide infrared emitting diode optically coupled to a photo‑MOS FET in an 8‑pin SOP package. It functions as a 2‑Form‑A switch suitable for replacing mechanical relays in a variety of electronic applications.
The document lists maximum ratings, electrical characteristics, isolation and switching parameters, as well as restrictions on product use and safety considerations for designers.
| Peak off‑state voltage | 350 V (min) |
|---|---|
| Trigger LED current | 3 mA (max) |
| On‑state current | 120 mA (max) |
| On‑state resistance | 35 Ω (max) |
| Isolation voltage | 1500 V rms (min) |
The peak off‑state voltage is specified as 350 V minimum.
The maximum forward current is 50 mA.
