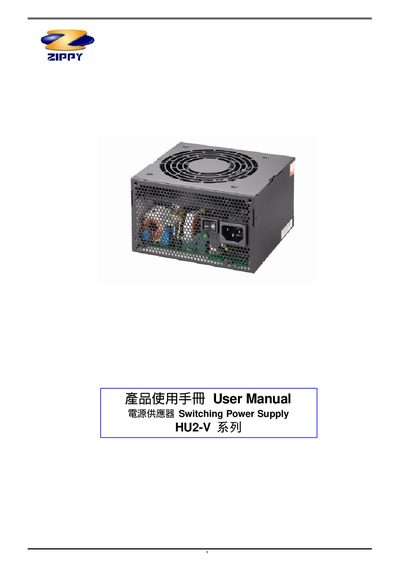

This document is a user manual for the Switching Power Supply HU2-V series. It includes warnings and safety instructions, product and accessories information, usage procedures, technical services, etc. The warnings and safety instructions cover precautions such as avoiding electric shock, avoiding use in high humidity or high dust environments, etc. The product and accessories include the power supply unit, screws, inspection report, user manual, AC power cord, and mounting bracket. The pin assignment diagram shows the positions and colors of each interface. The notes mention the safety specifications for the AC power cord and the ownership and modification rights of the product. Please ensure the use of approved accessories.
The Zippy HU2-V series switching power supplies are designed for 90‑264 VAC input voltage and support multiple output rails (+5 V, +12 V, -12 V, +3.3 V, +5 VSB). The manual covers wiring diagrams, pin assignments, and remote on/off control logic. Key specifications include high efficiency (up to 86 % at full load), built‑in overload, over‑voltage, and short‑circuit protection, and a 120 mm DC fan for cooling. Safety certifications such as UL 60950, CSA UL 60950, and TUV IEC 60950 are listed. This manual is written in Chinese.
| +5 V Output Current | 0.5 A (22 A peak) |
|---|---|
| +12 V Output Current | 2 A (40 A peak) |
| -12 V Output Current | 0 A (0.8 A peak) |
| +3.3 V Output Current | 0.5 A (22 A peak) |
| Cooling Method | One 120 mm DC fan |
| EMI Noise Filter | FCC Class B, CISPR22 Class B |
| Safety Certifications | UL 60950, CSA UL 60950, TUV IEC 60950 |
The +12 V output can deliver up to 40 A.
It is certified to UL 60950, CSA UL 60950, and TUV IEC 60950 standards.
Cooling is provided by a single 120 mm DC fan.
