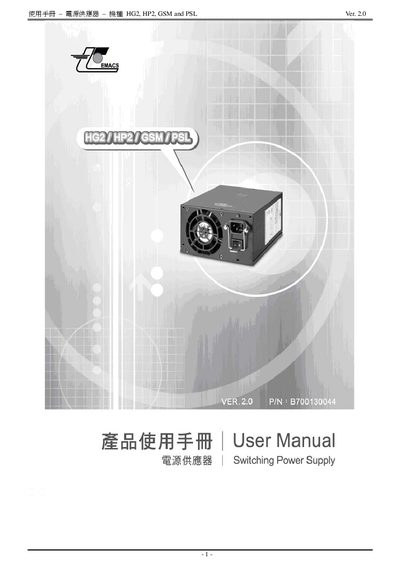

This manual provides specifications, installation, operation, troubleshooting, and safety information for Zippy HG2, HP2, GSM, and PSL power supplies.
The Zippy power supply manual covers four models – HG2, HP2, GSM and PSL – and includes detailed specifications, pin assignments, operational procedures, and maintenance guidelines. It also provides safety warnings, warranty information, and technical support contacts.
Key sections describe input and output characteristics, efficiency, protection features, cooling, and dimensions, as well as step‑by‑step troubleshooting and remote on/off control instructions to help users install and operate the supplies safely. This manual is written in Chinese.
| Input Voltage | 90 ~ 240 VAC |
|---|---|
| Frequency | 47 ~ 63 Hz |
| Input Current (115 VAC) | 8.0 A RMS |
| Efficiency | 70% typical |
| Cooling Fan | One 80 mm DC ball bearing fan |
| Dimensions (HG2) | 140 mm (D) × 150 mm (W) × 86 mm (H) |
The HG2 accepts an input voltage from 90 to 240 VAC.
It complies with UL 60950, CSA C 22.2 NO. 60950, TUV EN‑60950, and CCC standards.
Each unit is equipped with one 80 mm DC ball bearing fan.
