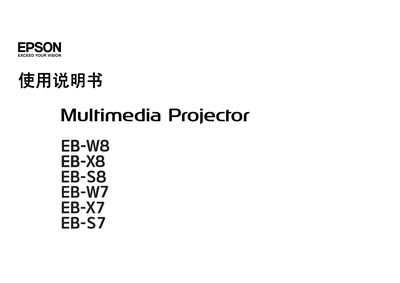

This user manual explains how to use the EB-W8/X8, EB-S8 and EB-W7/X7 projectors
The manual provides a complete guide to operating Epson's EB‑W8, EB‑X8, EB‑S8, EB‑W7, EB‑X7 and EB‑S7 multimedia projectors. It covers safety icons, component identification, basic and advanced projection features, USB Display, HDMI connectivity, menu navigation, and remote‑control functions.
Additional sections describe installation tips, lamp and air‑filter replacement, password protection, panel lock, troubleshooting procedures, and detailed technical specifications for each model. This manual is written in Chinese.
| Dimensions (W×H×D) | 295 mm × 77 mm × 228 mm |
|---|---|
| Resolution | WXGA 1280 × 800 (also XGA 1024 × 768, SVGA 800 × 600) |
| Lamp Type | UHE lamp, 200 W (model ELPLP54) |
| Power Consumption (working) | 244 W |
| Operating Temperature | 5 °C to +35 °C (no condensation) |
| Storage Temperature | -10 °C to +60 °C (no condensation) |
Connect a USB storage device or digital camera to the projector and use the USB Display function to project JPEG images directly.
