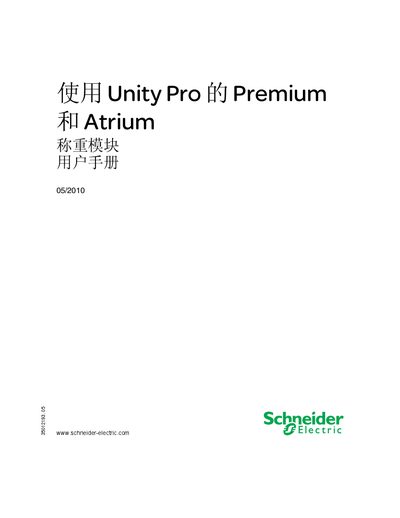

This manual provides general information and instructions for the Premium and Atrium Weighing Modules. It includes information on how to install, troubleshoot, and connect these modules.
This document covers the hardware installation and wiring guidelines for the TSX ISP Y101 weight module, including safety information, recommended cable types, and connection details. It also describes the software setup in Unity Pro, configuration of module parameters, and programming concepts needed to integrate the module into a control system.
Additional sections explain how to calibrate the module, use diagnostic functions, and perform debugging and troubleshooting. The manual is intended for qualified personnel familiar with PLC programming and safety regulations. This manual is written in Chinese.
| Cable type | Shielded twisted pair, minimum 0.28 mm² (AWG24) |
|---|---|
| Calibration range extension | ±2 % or ±5 % of full scale |
Installation, operation, maintenance and repair must be performed only by qualified personnel who have received safety training.
