Techsoft Motion IDM640-8EIA Smart Servo Driver User Manual

This document is a user manual written by TECHSOFT. It provides instructions for the installation and use of the IDM640-8EIA intelligent servo drive.

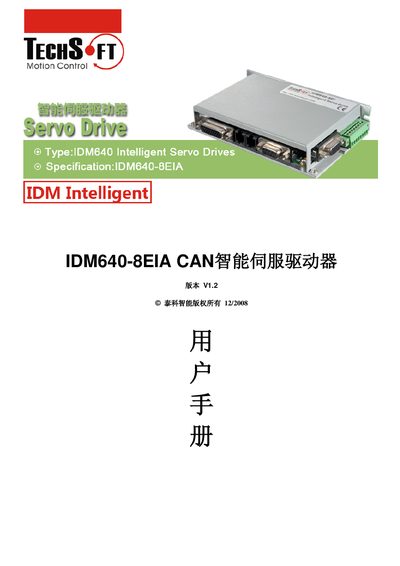

Techsoft Motion IDM640-8EIA Smart Servo Driver User Manual - cover page
Brand
IDM640-8EIA
Category
Industrial Robot
Document type
User Manual
Language
Chinese
Pages
89
File format
PDF
File size
3.4 MB
Published
28 October, 2011
Updated
28 September, 2023
MD5 checksum
3AE2FD503AA6A0E544F3BE99EE1CF95B
PDF
Techsoft Motion IDM640-8EIA Smart Servo Driver User Manual PDF

About this manual

This manual describes the IDM640-8EIA smart servo driver, a compact unit that integrates motor drive and motion‑control functions for brushless DC, AC brushless, brushed DC and stepper motors. It explains safety precautions, hardware installation, driver setup, and motion programming.

Key sections include safety information, product overview, hardware installation, EasySetup configuration, CANopen or TML motion programming, scaling factor definitions, and memory‑map details. The document also lists electrical specifications and wiring diagrams for proper integration. This manual is written in Chinese.

What's inside

  • Safety Information
  • Product Overview
  • Hardware Installation
  • Driver Setup
  • Motion Programming
  • Scaling Factors
  • Memory Map

Specifications

Power supply voltage (DC)24 VDC
Maximum output current±16.5 A
Isolation voltage200 V RMS

Frequently asked questions

What safety precautions are required before installing the IDM640-8EIA driver?

Only qualified personnel should install, set up, operate, and maintain the driver, and proper grounding and static‑discharge protection must be observed.

Which motor types are supported by the IDM640-8EIA?

The driver supports brushless DC, AC brushless (permanent‑magnet), brushed DC, and 2/3‑phase stepper motors.

Download PDF (3.4 MB)
