TC74AC174P/F/FT is a ultra high speed CMOS D type flip flop produced by Toshiba. It has the characteristics of low power consumption, high noise margin, high output current, balanced delay time and wide operating voltage range.
The TC74AC174 series is a high‑speed CMOS D‑type flip‑flop with a clear input. It offers low power consumption, wide operating voltage range, and balanced propagation delays. All inputs are protected by diodes to guard against electrostatic discharge.

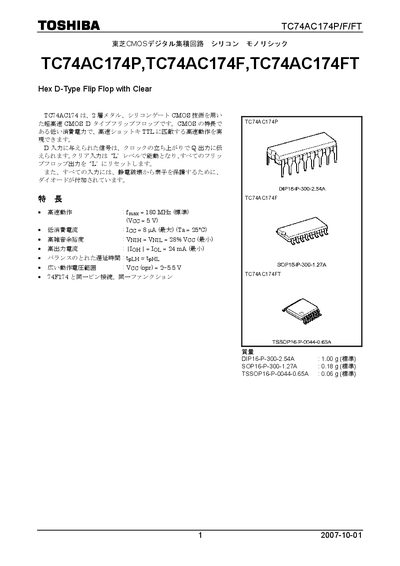

The device is offered in three package types (DIP‑16, SOP‑16, TSSOP‑16) with detailed absolute‑maximum ratings, operating conditions, DC and AC characteristics, and recommended timing parameters. Handling notes and usage restrictions are also included. This manual is written in Japanese.
| Typical maximum clock frequency | 180 MHz |
|---|---|
| Supply voltage (absolute max) | -0.5 V to 7.0 V |
| Supply voltage (operating range) | 2.0 V to 5.5 V |
| Input protection diode current | 20 mA |
| Output protection diode current | 50 mA |
| Operating temperature range | -40 °C to 85 °C |
| Storage temperature range | -65 °C to 150 °C |
The device operates with a supply voltage between 2.0 V and 5.5 V.
The typical maximum clock frequency is 180 MHz.
It is offered in DIP‑16, SOP‑16, and TSSOP‑16 packages.
