CS600N series Hall current sensor, using Hall effect open-loop principle, can measure direct current, alternating current, pulse and various irregular waveform currents in electrical isolation conditions.

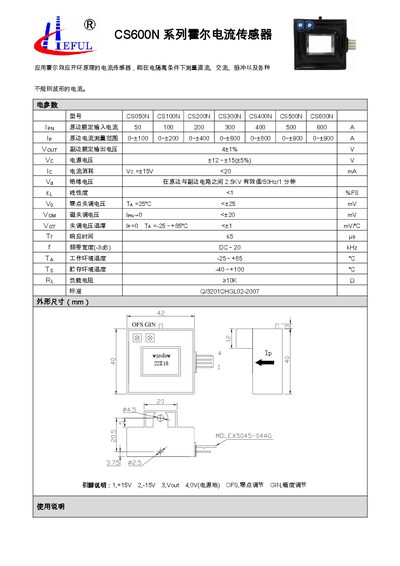

This manual describes the TEFUL CS600N series Hall current sensors, which can measure DC, AC, pulsed and irregular waveforms under a wide range of conditions. It lists the available models (CS050N‑CS600N) and their primary and secondary current ratings.
Key specifications such as rated primary current (600 A), secondary current range (0‑900 A), supply voltage (12‑15 V), frequency response (DC‑20 kHz), and operating temperature (‑25 °C to +85 °C) are provided along with dimensions (22 × 16 mm) and pin assignments. The document also includes safety notes on correct wiring to avoid sensor damage. This manual is written in Chinese.
| Supply Voltage | 12‑15 V |
|---|---|
| Power Consumption | <20 mA |
| Operating Temperature Range | -25 °C to +85 °C |
| Frequency Response (-3 dB) | DC to 20 kHz |
| Output Resistance | 10 kΩ |
It operates from a supply voltage of 12 V to 15 V (typical 15 V).
The sensor works from –25 °C to +85 °C.
Incorrect wiring can damage the sensor; ensure correct polarity and follow the pinout as described.
