The UEL060/050/050 series 60/50W single-output switching power supply is a product with international universal full-range AC input, short-circuit/overload/overvoltage protection, active power factor correction function, natural cooling, suitable for LED lighting and mobile applications, dustproof and waterproof grade IP20, in line with global lighting safety regulations, and a warranty period of 3 years.

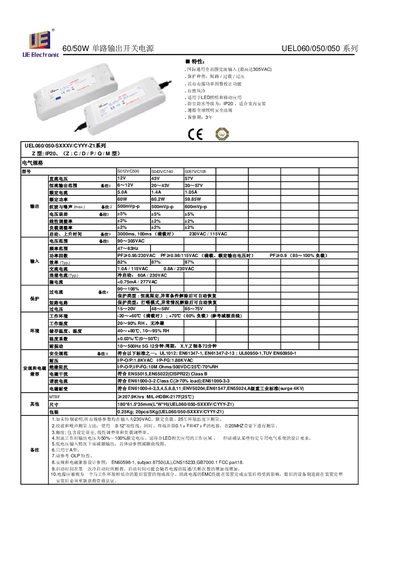

This manual describes the UE UEL060/050 series switch power supply, a single‑channel LED driver with a maximum output of 60 W. It outlines the product’s features, such as universal AC input (90‑305 VAC), short‑circuit, overload and over‑voltage protection, natural air cooling, IP20 rating for indoor use, and a three‑year warranty.
The document includes detailed electrical specifications, LED driving modes (constant‑voltage and constant‑current), EMI mitigation recommendations, waterproof connector options, and pin‑configuration tables for various output cable assemblies. Safety standards (UL, EN, TUV) and environmental limits are also provided. This manual is written in Chinese.
| Output current | 5.0 A / 1.4 A / 1.05 A |
|---|---|
| Output power | 60 W / 60.2 W / 59.85 W |
| Efficiency (typ.) | up to 93 % |
| Power factor | PF > 0.95 @230 VAC, PF > 0.98 @115 VAC |
| Protection features | Short‑circuit, overload, over‑voltage, auto‑recovery |
| IP rating | IP20 (indoor use) |
| Operating temperature | -20 °C to +60 °C (full load) |
| Storage temperature | 40 °C to +80 °C |
It provides short‑circuit, overload, and over‑voltage protection and automatically recovers after a fault is cleared.
