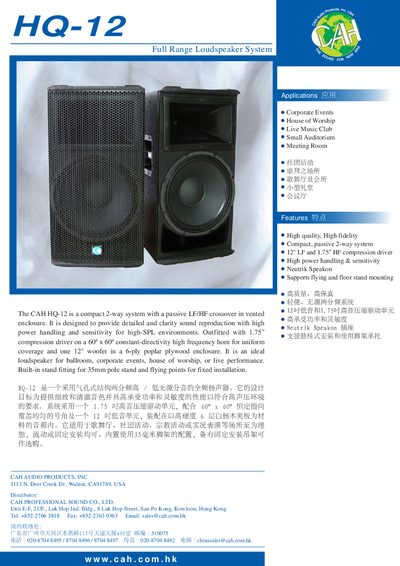

The CAH HQ-12 is a compact 2-way system with a passive LF/HF crossover in vented enclosure. It is an ideal loudspeaker for ballroom, corporate events, house of worship, or live performance.
The CAH HQ-12 is a compact 2‑way passive loudspeaker system designed for corporate events, houses of worship, live music clubs, small auditoriums and meeting rooms. It features a 12" low‑frequency woofer and a 1.75" high‑frequency compression driver with a 60° × 60° coverage pattern, Neutrik Speakon connectors, and options for flying or floor‑stand mounting.
The manual lists detailed technical specifications such as a 50 Hz‑20 kHz frequency range, 97 dB sensitivity, 122 dB maximum SPL, 300 W power handling, 8 Ω nominal impedance, and dimensions of 618 mm × 326 mm × 418 mm. It also includes warranty terms that cover one year from the original purchase date.
| Crossover Frequency | 44.5 Hz – 1.3 kHz |
|---|
