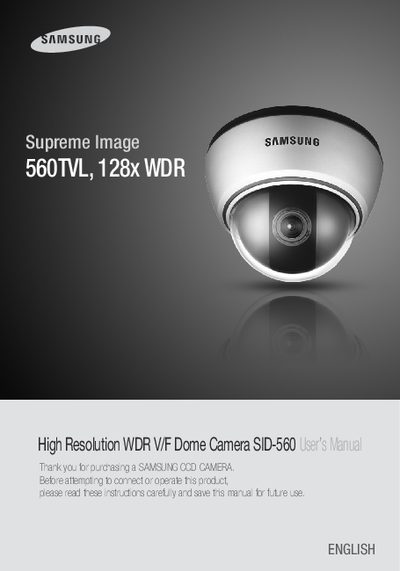

samsung Supreme Image 560TVL Manual

This manual provides a detailed description of the functions and methods for using the SID-560 Supreme Image 560TVL, 128x WDR Dome Camera.

Brand: Samsung
Category: Digital cameras
Document type: User Manual
Language: English
Pages: 17
File format: PDF
File size: 6.4 MB
Published: 17 October, 2011
Updated: 30 September, 2023
MD5 checksum: 43ED079227C4496D8307911A34AE7285
PDF: samsung Supreme Image 560TVL Manual PDF

About this manual

The SID-560 is a high‑resolution color dome camera featuring a 1/3" Sony CCD, wide dynamic range, and 3‑axis pan‑tilt‑rotate mechanism. It supports day/night operation, digital image stabilization, and RS‑485 communication for remote control.

The manual guides qualified installers through safety precautions, mounting, wiring, and configuration of menu settings, lens, exposure, and motion detection functions. It also details troubleshooting steps and technical specifications.

What's inside

Precautions
Components and Accessories
Overview
Installation
Connection
Operating Your Camera
Menu Configuration
Specifications
Troubleshooting

Specifications

Input Voltage	DC 12V ±10%
Pan Base Rotation	340° total (170° each side)
Lens Focal Length	2.8‑10 mm
Dimension (height)	105 mm

Frequently asked questions

What power supply is required for the SID‑560 camera?

The camera requires a DC 12 V supply with a tolerance of ±10 %.

How far can the pan base rotate?

The pan base can rotate 170° to each side, giving a total range of 340°.

Can the camera be installed in high humidity or extreme temperatures?

Installation in extreme temperature or high humidity conditions is not recommended.
