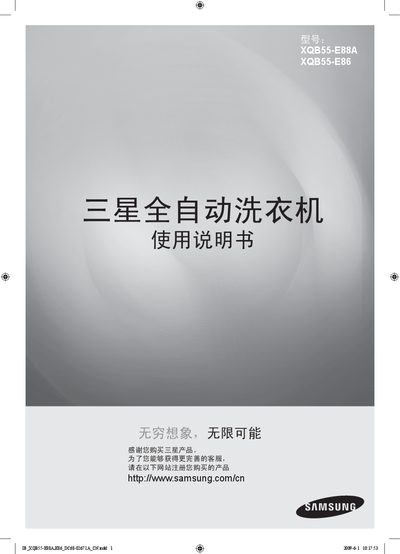

This is the user manual of Samsung fully automatic washing machine XQB55-E88A, XQB55-E86. The washing machine has features of silver ion health system, waterfall wash, five-step super cleaning, wind dry, artificial intelligence, stainless steel diamond inner barrel, magic filter net, time appointment and so on.
This manual provides step‑by‑step instructions for installing, using and maintaining Samsung XQB55‑E88A and XQB55‑E86 top‑load washing machines. It includes safety warnings, wiring and water‑line connections, control‑panel functions, detergent dosing, wash programs and cleaning procedures.
The document also contains a troubleshooting guide, product standards and a full list of technical specifications such as dimensions, capacity, power consumption and noise levels, helping users get the most out of their appliance. This manual is written in Chinese.
| Product type | 波轮式全自动洗衣机 |
|---|---|
| Model | XQB55-E88A / XQB55-E86 |
| Dimensions (W×D×H) | 530 mm × 540 mm × 900 mm |
| Standard water consumption | 132 L |
| Weight | 31 kg |
| Rated wash & spin capacity | 5.5 kg |
| Rated voltage / frequency | 220 V / 50 Hz |
| Rated power consumption | 360 W |
| Water pressure range | 0.03 MPa – 1 MPa |
| Spin speed | 760 r/min |
| Wash method | 波轮式 |
| Spin method | 离心式 |
| Wash noise level | 47 dB (A‑weight) |
| Spin noise level | 57 dB (A‑weight) |
Press the reservation (预约) key, then select a delay between 3 and 18 hours. The machine will start the wash cycle after the set time.
The control panel lets you choose Standard, Quick, Gentle, Super Clean, Drum Clean and other programs by pressing the program key.
