The iCanView370 is a network camera with 10x optical zoom, built-in IP+(Hybrid) technology, IP66 dust and water resistance, analog CVBS output, dual video streams (H.264 and MJPEG), support for 3G smart phone monitoring, and two-way voice function.
The iCanview370 is an IP‑based PTZ camera with IP66 waterproof rating, supporting H.264 and MJPEG video streams. It offers 10× optical zoom, multiple video resolutions, and built‑in audio with 32 kbps G.726 ADPCM input and 128 kbps PCM output.

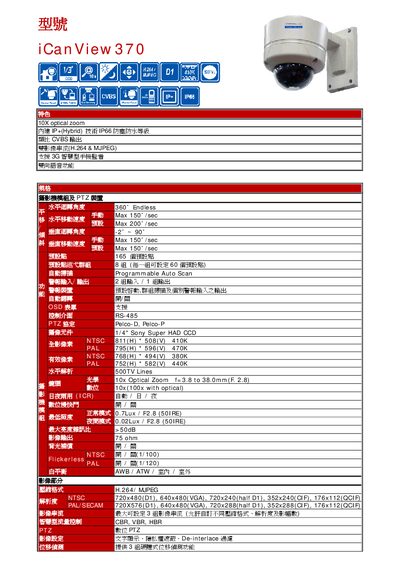

The camera includes network capabilities such as IPv4/IPv6, DHCP, UPnP, SNMP, and supports protocols like RTSP, HTTP, and FTP. It provides alarm inputs/outputs, programmable auto‑scan, and up to eight preset groups with 60 preset points each. Power options are 12 V DC with either 1.33 A (16 W) or 1.8 A (22 W) consumption, and the unit measures roughly 157 mm × 178 mm and weighs 2 kg. This manual is written in Chinese.
| Image sensor | 1/4" Sony Super HAD CCD |
|---|---|
| Optical zoom | 10× (3.8‑38.0 mm, f/2.8) |
| Supported video resolutions | 720x480 (D1), 640x480 (VGA), 720x240 (half D1), 352x240 (CIF), 176x112 (QCIF) |
| Audio input | 32 kbps G.726 ADPCM (Line‑in / Mic‑in) |
| Audio output | 128 kbps 16‑bit Linear PCM (Line‑out, 1 Vpk) |
| Power consumption | 12 V DC, 1.33 A, 16 W (or 1.8 A, 22 W) |
| Dimensions | 157 mm × 178 mm |
| Operating temperature | -105 °C ~ 50 °C |
It supports H.264 and MJPEG video streams with resolutions such as 720×480 (D1), 640×480 (VGA), 720×240 (half D1), 352×240 (CIF) and 176×112 (QCIF).
The camera allows up to 8 preset groups, each configurable with up to 60 preset points.
It supports IPv4/IPv6, DHCP, UPnP, SNMP, RTSP, HTTP, HTTPS, FTP, SMTP, and many other protocols such as TCP, UDP, ICMP, and QoS.
The camera operates on 12 V DC, drawing either 1.33 A (16 W) or 1.8 A (22 W) depending on the configuration.
