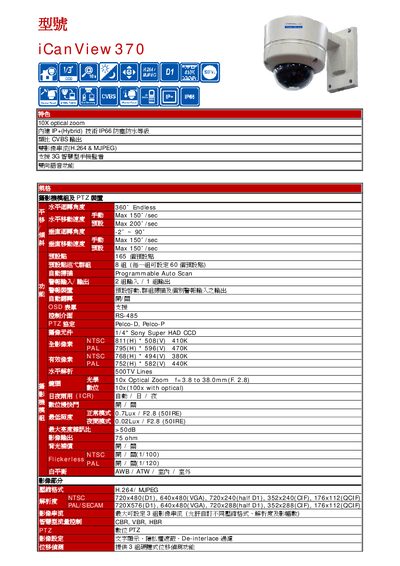

AGNI ICanview370 User Manual
The ICanview370 is a PTZ camera equipped with a 1/4" Sony Super HAD CCD sensor, 10x optical zoom (f=3.8‑38.0mm) and supports both day and night operation with IR illumination. It offers multiple video output formats including CVBS and various digital resolutions such as 720x480 (D1) and 640x480 (VGA).
Network connectivity includes support for IPv4/IPv6, DHCP, UPnP, SNMP and protocols like Pelco‑D and Pelco‑P for PTZ control. The camera provides alarm I/O, audio input/output, and can stream up to three video streams simultaneously. Power requirements are 12 VDC with options for 1.33 A (16 W) or 1.8 A (22 W), and the unit weighs about 2 kg. This manual is written in Chinese.
AGNI iCanview370 specifications
| Image sensor | 1/4" Sony Super HAD CCD |
|---|---|
| Optical zoom | 10x (f=3.8‑38.0mm) |
| Supported video resolutions | 720x480 (D1), 640x480 (VGA), 720x240 (half D1), 352x240 (CIF), 176x112 (QCIF) |
| PTZ control protocols | Pelco‑D, Pelco‑P |
| Power consumption | 12 VDC, 1.33 A (16 W) or 1.8 A (22 W) |
| Dimensions | 157 mm × 178 mm |
| Operating temperature range | -105 °C to 50 °C |
| Audio codec | 32 kbps G.726 ADPCM |
Source: AGNI ICanview370 User Manual
All AGNI iCanview370 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What video resolutions does the ICanview370 support?
It supports 720x480 (D1), 640x480 (VGA), 720x240 (half D1), 352x240 (CIF) and 176x112 (QCIF).
Which PTZ control protocols are compatible with the camera?
The camera works with Pelco‑D and Pelco‑P PTZ control protocols.
What video formats does the iCanview370 support?
It supports H.264 and MJPEG video streams with resolutions such as 720×480 (D1), 640×480 (VGA), 720×240 (half D1), 352×240 (CIF) and 176×112 (QCIF).
How many PTZ preset groups can be configured?
The camera allows up to 8 preset groups, each configurable with up to 60 preset points.
