This document introduces the features and characteristics of SCD series refrigerated and frozen cabinets, including the use of high-temperature resistant reflective tempered glass doors, the functions of refrigerated micro-freezing room and frozen room, as well as temperature control principles and temperature adjustment, etc.

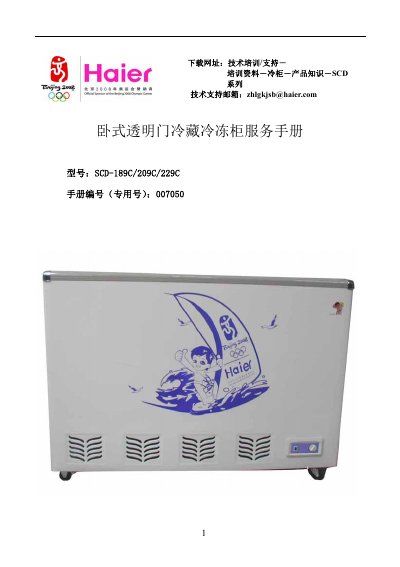

The Haier SCD‑189C/209C/229C series are horizontal transparent‑door refrigeration cabinets with separate refrigerated and frozen compartments. The manual describes the product’s features, safety precautions, wiring diagrams, and detailed parts lists.
Key sections include product features, technical data (capacity, power, compressor type, refrigerant), thermostat operation, compressor and thermostat parameters, disassembly procedures, and a complete parts list with part numbers for service and repair. This manual is written in Chinese.
| Effective volume | 189 L / 209 L / 229 L |
|---|---|
| Rated voltage | 220 V (all models) |
| Input power | 115 W / 120 W / 125 W |
| Compressor model | L88CY / EQ108 / QD123Y |
| Refrigerant | R600a |
| Cooling capacity | 150 W / 160 W / 180 W |
| Net weight | 48 kg / 50 kg / 53 kg |
Insert the key and rotate it clockwise 90° to lock; rotate counter‑clockwise to unlock.
The thermostat knob has positions 1 to 7; higher numbers correspond to lower temperatures.
The cabinets use R600a as the refrigerant.
Ensure the plug contacts firmly with the socket and avoid water exposure to prevent fire hazards.
