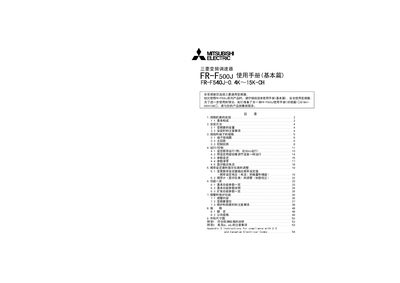

This manual is the basic user manual for the Mitsubishi frequency converter FR-F500J series. It introduces the use of the frequency converter, installation, wiring, operation, alarm and protection functions.
This manual introduces the FR‑F500J series frequency converter, covering safety precautions, proper handling, and basic concepts. It emphasizes reading the manual before first use, ensuring power is disconnected, and following all safety warnings to prevent electric shock, fire, or equipment damage.
The document details installation methods, wiring, parameter setting, frequency adjustment, and functional overviews such as alarm handling and protection features. It also includes specifications, dimension data, and appendices for European, UL/cUL, and Canadian compliance. This manual is written in Chinese.
