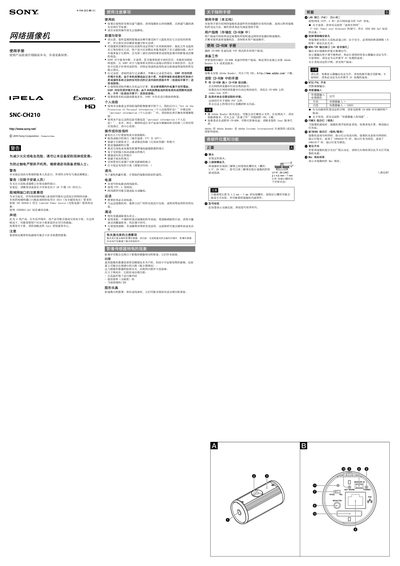

This is a user manual for a network camera, mainly introducing the product's usage methods, precautions, safety instructions, etc.
This manual explains how to safely install the SNC-CH210 network camera, including mounting, wiring, and required safety precautions. It also covers power supply via PoE, LAN connection, and environmental requirements.
The guide details the camera’s specifications, sensor characteristics, video formats, and how to access the supplemental CD‑ROM user guide. Maintenance, cleaning, and transport instructions are also provided. This manual is written in Chinese.
| Video compression formats | JPEG / MPEG4 / H.264 |
|---|---|
| Maximum frame rate | 30 fps (1280×720) |
| Image sensor type | 1/2.8" Exmor |
| Effective pixels | ≈3,270,000 |
| Minimum illumination | 2.0 lx (AGC max) / 50 IRE |
| Focal length | 3.3 mm |
| Maximum aperture | F2.8 |
| Field of view | Horizontal 88°, Vertical 65° (4:3) |
| Minimum object distance | 0.5 m |
| Power consumption | 2.4 W |
| Operating temperature | 0 °C to 50 °C |
| Storage temperature | -20 °C to +60 °C |
| Operating humidity | 20 % to 80 % (non‑condensing) |
| Dimensions (diameter × length) | 244 mm × 9 mm |
| Weight | ≈100 g |
Use a UTP Category‑5 (5‑class) Ethernet cable that complies with IEEE 802.3af PoE standards.
The camera supports JPEG, MPEG‑4, and H.264 video compression.
