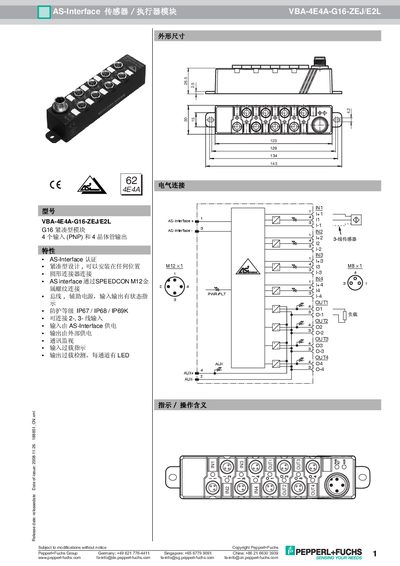

This manual describes the VBA-4E4A-G16-ZEJ/E2L AS‑Interface sensor/actuator module, its electrical characteristics, mechanical dimensions, and LED status indicators. It includes wiring information, connector types, and safety compliance references.
Installation notes cover mounting options, IP‑rating protection (IP67/68/69K), and environmental limits. Technical parameters such as supply voltage, current ratings, response time, and operating temperature are listed, along with a parts list and accessory references. This manual is written in Chinese.
| Ingress Protection | IP67 / IP68 / IP69K |
|---|---|
| Module Thickness | 30 mm |
| Supply Voltage | 20 … 30 V DC PELV |
| Sensor Current (max) | 40 mA (sensor) / 240 mA (max) |
| Response Time | < 1 ms |
| Operating Temperature | -25 °C … 70 °C |
| Storage Temperature | -25 °C … 85 °C |
| LED Indicator – Fault | Yellow |
| LED Indicator – Output Active | Red |
The module operates on a supply voltage of 20 … 30 V DC PELV.
The module can operate between –25 °C and 70 °C.
