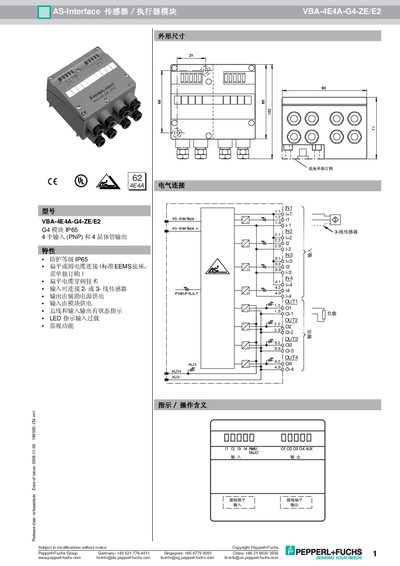

This document introduces the technical parameters of VBA-4E4A-G4-ZE/E2 sensor/actuator module, including external dimensions, electrical connections, indication/operation meanings, technical parameters, etc.
The VBA-4E4A-G4-ZE/E2 is an AS‑Interface G4 series module with four input and four output channels. It supports PNP sensors or mechanical contacts and can be powered from a 24 V DC source.
The document describes the module’s technical parameters, IP protection rating, wiring connections, LED status indicators, installation steps, and diagnostic functions. It also lists environmental limits, physical dimensions, and certification references.
| Operating Temperature | -25 °C to 60 °C |
|---|---|
| Connector Type | M12×1.5 |
| Material | PA6GF30 |
The module can operate between –25 °C and 60 °C.
