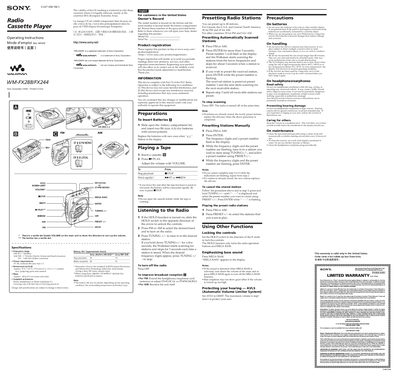

This is an operating manual for a radio cassette player, which mainly introduces the product's functions and usage methods.
This manual provides step‑by‑step instructions for using the Sony WM‑FX288/FX244 Walkman, including battery installation, cassette playback, radio tuning, and optional features such as MEGA BASS and AVLS. Safety precautions, maintenance tips, and warranty information are also included.
The document contains specifications for frequency ranges, power requirements, dimensions, weight, and battery life, as well as detailed procedures for presetting radio stations, locking controls, and adjusting volume limits.
| Frequency range (FM) | 87.5 – 108 MHz |
|---|---|
| Frequency range (AM) | 530 – 1 710 kHz (North, Central and South America) |
| Power requirements | 3 V DC, 2 AA batteries (R6) |
| Dimensions | ≈ 91.4 mm × 115.5 mm × 37.8 mm |
| Weight | ≈ 149 g (main unit only) |
| Battery life (radio reception) | ≈ 40 h (FM) / 14 h (AM) |
Slide open the battery compartment lid and insert two AA (R6) dry batteries with the correct polarity.
