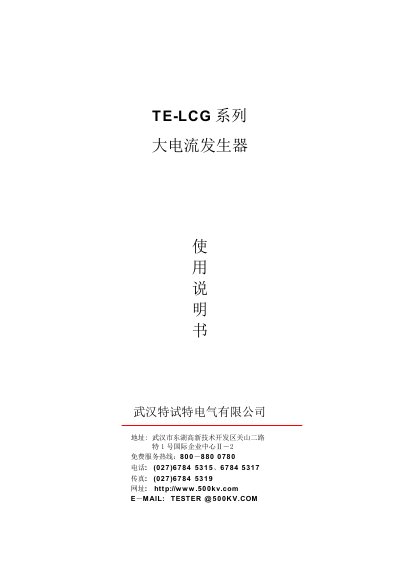

This manual provides specifications, installation steps, operating procedures and safety notes for the TE-LCG series large current generators.
The TE-LCG series large current generators are designed for high‑current testing in power plants, substations, motor factories, research labs and similar facilities. The devices are compact, lightweight and built for easy maintenance.
The document covers the main parameters of each model, detailed installation instructions, operating methods, working principles and important safety precautions. It also includes wiring diagrams, testing procedures and troubleshooting guidance. This manual is written in Chinese.
| Model | TE-LCG-500 |
|---|---|
| Current rating | 4 kA |
| Rated voltage | 220 V |
| Power | 28 kW |
| Model | TE-LCG-1000 |
| Current rating | 8 kA |
| Power | 42 kW |
The TE-LCG‑500 is rated for 220 V operation.
The generator can operate at 220 V or 380 V, depending on the model.
