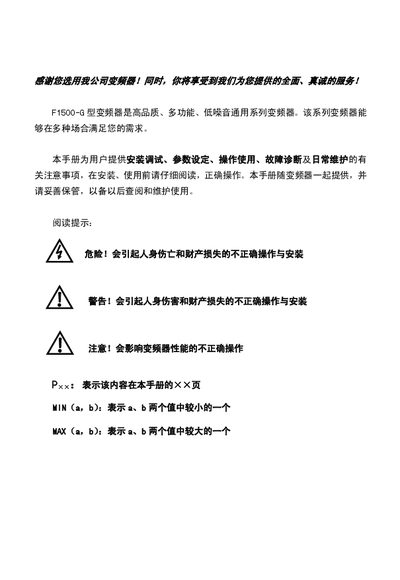

F1500-G type inverter is a high-quality, multi-functional, low-noise universal series inverter. This series of inverters can meet your needs in many occasions.
This manual covers safe usage, product specifications, installation procedures, and wiring for the F1500-G series frequency transformer. It includes detailed instructions for connecting power, grounding, and configuring parameters such as frequency range and power rating.
Additional sections describe troubleshooting common faults, maintenance recommendations, and warranty information, ensuring reliable operation in industrial environments. This manual is written in Japanese.
| Rated Power | 15 kW |
|---|---|
| Input Voltage | 380 V AC 3‑phase |
| Frequency Range | 0.00 – 400.0 Hz |
| IP Rating | IP20 |
| Operating Temperature | Not specified (document mentions high temperature caution) |
The manual warns to avoid improper installation, ensure proper grounding, and keep the unit away from moisture, dust, and direct sunlight.
Connect the grounding terminal PE to a proper earth point; the internal N terminal must not be short‑circuited to the power source.
The device is rated IP20, suitable for indoor use with protection against solid objects larger than 12 mm.
The warranty lasts twelve months from the date of shipment, covering defects under normal use.
